DIAMOND Coated Grippers
MACHINE Grooverd Pads
URETHANE Coated Grippers

HEIDELBERG

Description Home
Cylinder
Grip Texture
 Press Mfr ID
G.T.
Stock#


20/3000-		 Impression Cylinder Finger
W x L
19 x 84.25mm
Between Holes/ Ctr-Ctr
40mm
D/C
U/C
P/S
Speed Master
SORD
49.011.827N
49.011.027
20/3000-D
20/3000-U
20/3000-P


20/3008-		 Impression Cylinder Finger
W x L
15.8 x 84.25mm
Between Holes/ Ctr-Ctr
40mm
D/C
U/C
P/S

Speed Master
102 & 72
1990 to Present

C3.581.727
C3.581.627
20/3008-D
20/3008-U
20/3008-P


20/3009- 		Impression Cylinder Finger after Perfector
W x L
18.9 x 73.75 mm
Between Holes/ Ctr-Ctr
22 mm
D/C
U/C
P/S
SM 102-72 91.581.827N
91.581.727N
20/3009-D
20/3009-U
20/3009-P


20/3033-U
Impression Cylinder Finger after Perfector
W x L
16 x 74 mm
Between Holes/ Ctr-Ctr
22 mm
D/C
U/C
P/S
SM 102" & 72"
1990 to Present
82.580.727N
82.580.627N
20/3033-D
20/3033-U
20/3033-P

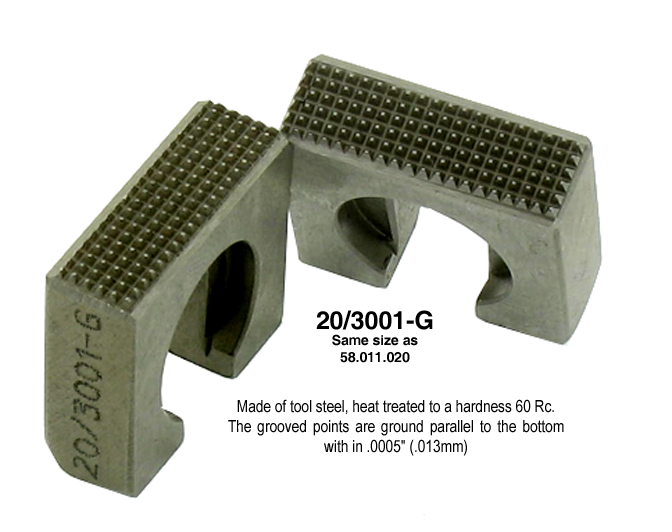

20/3001
View grooved points

Impression Cylinder Pad
W x L
20 x 18 mm
M/G
 Speed Master
SORD		 58.011.020
58.711.101
20/3001

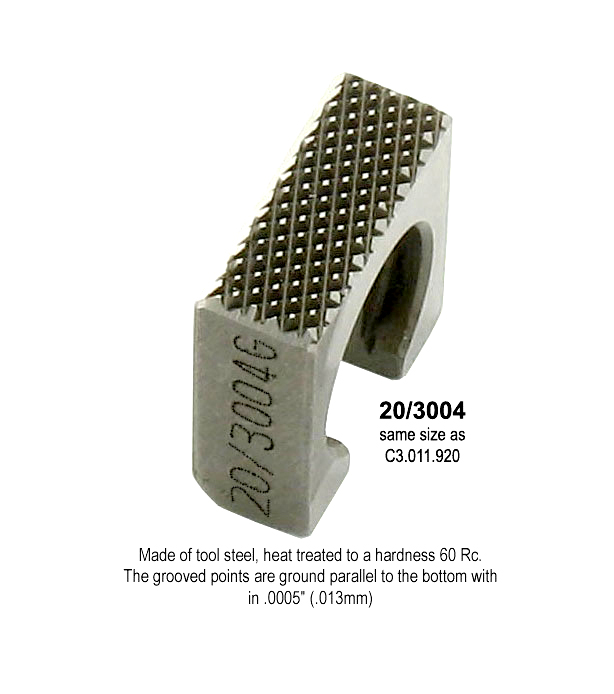

20/3004
View grooved points

 Impression Cylinder. Pad
W x L
18 x 18 mm
M/G
 SM 102-72 91.014.310
C3.011.920
20/3004


2R/3006
Recondition
Your Grippers Only. 		Delivery Pad
D/C
 Recondition
Your Gripper Only.		 93.525.310
2R/3006


20/3002
Steel Body		 Delivery Pad
Head Size
18 mm
Temp. Rated
350 F
D/C
 91.014.310
93.014.310
20/3002


R20/3043

Recondition
Your Grippers Only.

Delivery Finger

Repair bent or broken tips.
30mm (1.181") Shaft Diameter
D/C
 Speed Master
CD-102 L		 93.014.307.02
2R/3043


20/3003


20/3013		 Impression Cylinder after Perfector
Center Pads
Head Size
20 mm (20/3003)

18 mm (20/3013)
M/G


M/G
 SM 102-72 91.581.620
Cross Grooves

C3.581.920
Cross Grooves
20/3003


20/3013




20/3014-Dr.
Driver Side
View grooved points

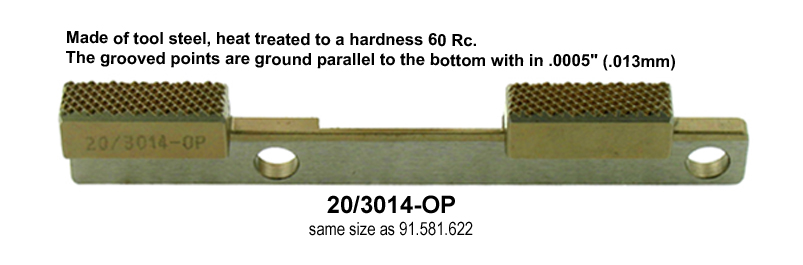

20/3014-OP
Operator Side
Impression Cylinder after Perfector
End Pad
Pad Size
20 mm
Between Holes/Ctr-Ctr
55.5 mm
M/G
 SM 102
Drive Side


Operator Side
91.581.621
Cross Grooves

91.581.622
Cross Grooves
20/3014-Dr


20/3014-Op



20/3028-Dr.
Driver Side

20/3028-Op.
Operator Side 		Impression Cylinder after Perfector
End Pad
Pad Size
20 mm
Between Holes/Ctr-Ctr
58.3 mm
M/G
 SM 72
Drive Side


Operator Side 		93.581.621
Cross Grooves

93.581.622
Cross Grooves
20/3028-Dr


20/3028-Op


20/3012
20/3012-D		 Perfector Fixed (Lower) Pincer Gripper
W x L
17 x 52.8 mm
P/Steel
D/C
 Speed Master
CD 102

91.580.338
91.580.638

20/3012-P
20/3012-D


20/3015 Urethane		 Perfector Spring (upper)Pincer Gripper-Urethane
W x L
17 x 38.8 mm
D/C
U/C
 Speed Master
CD 102 		91.580.337
91.580.637
20/3015-D
20/3015-U

20/3049-PR
20/3049-PL


Operator side		 Delivery Finger
W x L
15.9 x 64.75mm
Between Holes/ Ctr-Ctr
44.8mm
P/Steel

Diamond Coated
 SM-74 M2.014.004
M2.014.011

M2.014.004
M2.014.011
20/3049-PR
20/3049-PL

20/3049-DR
20/3049-DL



20/3041-U
2R/3041-D
Impression, Transfer, Double Drum
Cylinder Tips
W x H x T
15.9 x 16 X 13.7mm
Recondition YOUR gripper tips with a diamond coating 2R/3041-D

U/C
D/C

SM 52
SM 74

 G3.511.727
M4.011.727
20/3041-U
2R/3041-D


20/3047		 Perfector Spring (Upper) Pincer Gripper
W x L
15 x 35.18 mm
U/C
 SM 74" M2.583.637/01
20/3047


20/3050		 Perfector Fixed (Lower) Pincer Gripper
W x L
15 x 52.9 mm
P/S
SM 74" M2.583.398/01
20/3050


20/3048 		Perfector Fixed (Lower) Pincer Gripper
W x L
17 x 53 mm
P/S
SM 72 - 102" 82.583.338/01A
20/3048


20/3045		 Perfector Spring (Upper) Pincer Gripper
W x L
17 x 35 mm
U/C
 SM 72 - 102" 82.583.337
20/3045


20/3051
Eccentric Perfector Lower Pincer Gripper
W x L
14.9 x 49.6 mm
P/S
 SM 102-P 87.583.338
20/3051


20/3046
 Perfector Spring Pincer Gripper
W x L
14.9 x 30.7 mm -Urethane
U/C
 SM 102-P F2.583.337
20/3046-U

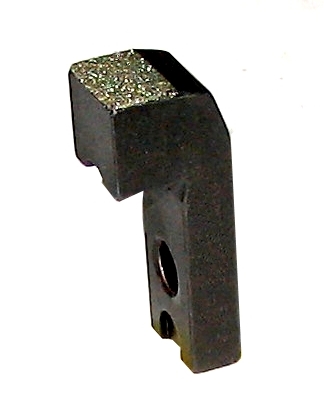

20/3068-D
 Swing Arm Pad
W x Height
13 x 38.7 m
D/C
 SP- 74 M2 .013.016
20/3068-D


More Info:

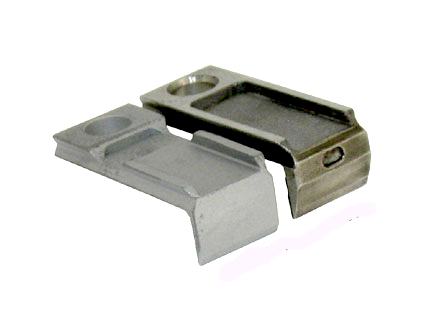

2R/3054
Recondition
Your Grippers Only.
Hook Impression after Perfector Gripper
W x L
15.9 x 42.3 mm -Urethane
U/C
 SM 74"

M2.581.727/06
2R/3054


20/3010-
 Delivery Finger
W x L
13 x 43 mm
Between Holes/ Ctr-Ctr.
17.66 mm
D/C
U/C
 MO
19" x 25"		 43.014.004
63.014.024
20/3010-D
20/3010-U



20/3011-		 Impression Cylinder Finger
Transfer Cylinder Finger
Double Drum Finger
Swing Arm
W X L
14 X 16.9 mm
D/C
U/C
 GTO
MO

69.011.827.k01
69.011.727
42.0110127
MV.021.878

20-3011-D
20/3011-U


20/3017		 Impression Cylinder after Perfector Gripper
W x L
13.9 x 69 mm
Between Holes/ Ctr-Ctr.
22 mm

D/C
U/C

GTO
MO 		52.581.029 F
52.581.027
52.581.827
20/3017-D
20/3017-U


20/3018-U		 In Feed or Swing Arm Gripper
Ranger Drum
W x L
18 x 45.3 mm
U/C
 MO
SORSZ - 40''
Speed Master		 27.013.049 F
20/3018-U

SM 15 Req.


20/3025
20/3025-D		 Perfector Fixed (Lower) Pincer Gripper
W x L
15 x 48.5mm
P/S
D/C
 MO & GTO
 52.580.338
52.580.363 Notched
20/3025-P
20/3025-D


20/3016		 Perfector Spring (upper) Pincer Gripper
W x L
15 x 35.2 mm
D/C
U/C
 MO
GTO 		52.580.337
52.580.362 Notched
20/3016-D
20/3016-U
10 full grippers & 1 "half wide gripper" make a set. To order the "half wide gripper," add "N" to the part number.


20/3005		 Impression Cylinder Finger
W x L
18 x 73.5 mm
Between Holes/ Ctr-Ctr.=32.5 mm
D/C
 RVO
SBD		 36.011.027 F
20/3005-D
20/3005-U


20/3007-D
20/3007-U



 Impression Cylinder Finger
W x L
18 x 76.9 mm
Between Holes/ Ctr-Ctr. =36 mm
D/C
 KORD-64
SBB
SBG
SB
S


S.1127F (New)
03.011.027F
03.011.027
08.011.027F (Old)

20/3007-D
20/3007-U


20/3019-D
20/3019-U 		Impression Cylinder Finger
Made with two gripping surfaces.
Urethane or Diamond Coated.
D/C
U/C

TOK,
QuikMaster

 22.011.032
A1.011.035
20/3019-D
20/3019-U


2R/3055
Reconditioning
your grippers only		 Plate Clamp Gripper,
Resurface the top of bar with industrial diamond coating.
D/C 100/120
 Heidelberg Quick Master 2R/3055-D


20/3020-D
20/3020-U

Delivery Finger
W x L
12.6 x 54.2 mm
Between Holes/Ctr-Ctr.=22.3 mm
D/C
U/C
SBB, SBG
SBD, S-Line		 03.014.004
S.141.404 F
20/3020-D
20/3020-U


20/3021- with hole		 Feed Board
W x L
9.5 x 49.8 mm
Between Holes/Ctr-Ctr=12 mm
D/C
U/C
 GTO, KSB
KS, KSBA
46" - 52"		 43.020.035
20/3021-D
20/3021-U

20/3022- without hole		 Feed Board
W x L
9.5 x 49.8 mm
Between Holes/Ctr-Ctr=12 mm
D/C
U/C
 KSB, KS
KSBA
letter Press		 04.002.035
20/3022-D
20/3022-U


20/3023-		 Delivery Finger
W x L
12.6 x 54.4 mm
Between Holes/Ctr-Ctr=22.3 mm
D/C
U/C
P
KORD
GTO 52
KSBA 		14.875.001
1404F
20/3023-D
20/3023-U
20/3023-P


20/3024-D
20/3024-U

Rack Finger
W x L
12.6 x 76 mm
Between Holes/Ctr-Ctr=19 mm
D/C
U/C
 S-Line
SDB		 03.014.051F
S.1451 F
20/3024-D
20/3024-U



20/3029-C

Rack Finger Cover Plate

Between Holes/Ctr-Ctr=19 mm
Cover Plate for 20/3024
 S-Line
SDB		 03.014.019
20/3029-C


20/3026

20/3026-C
Cover Plate

 Feed Finger
W x L
9 x 45.3 mm
Between Holes/Ctr-Ctr=7.8 mm
D/C
U/C
 S-Line, SB
SBG, SBD		 03.020.035

20/3026-D
20/3026-U


20/3026-C
Cover Plate

 Feed Finger Cover Plate
Between Holes/Ctr-Ctr=7.8 mm
Cover Plate for 20/3026
 S-Line, SB
SBG, SBD		 04.024.045

20/3026-C
Delivery Bar


20/3027


Reconditioning your Bars		 Delivery Bar - Repair gripper bar.
D/C
 KORD
GTO 		Machine old surface
off and screw on a new
diamond coated steel
pad surface. #20/3035
2R/3027

New Aluminum Casted
Delivery Bar.
Comes with a new shaft and diamond coated steel pads.
See: #20/3025

KORD 64

 A one piece casting and is powder coated with a black epoxy paint.

20/3040






20/3035
New Delivery Pad
W x H X D
13.9 X 11.5 X 9.5 mm
D/C
KORD
GTO 		This pad is for rebuilding worn pad surfaces, for delivery bars.
20/3035

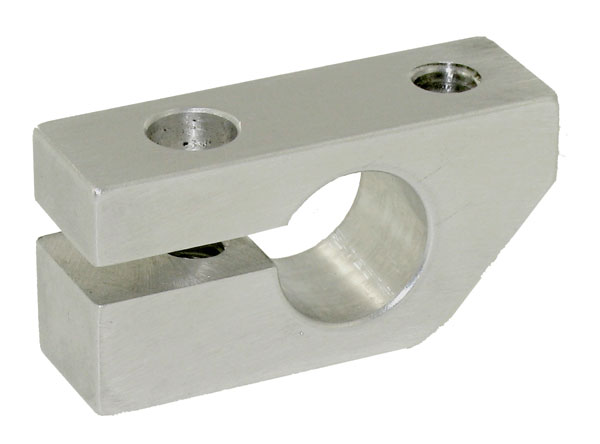

20/3036



More Info:		 Gripper Holder KORD
GTO
SBG
SBB
SBD
20/3036

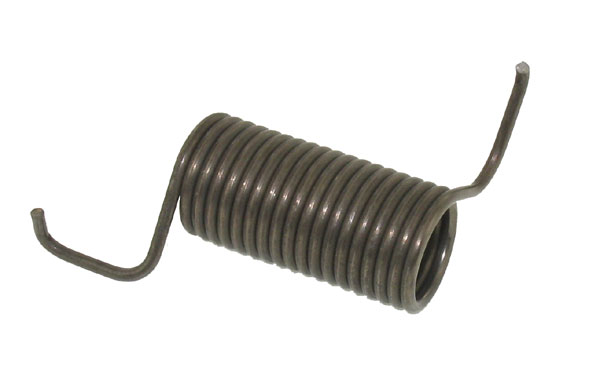

20/3040-S




More Inf: 		Delivery gripper bar spring KORD 20/3040-S



20/3027- SCR



More Inf: 		Delivery gripper bar
shoulder screw		 KORD 20/3027-SCR

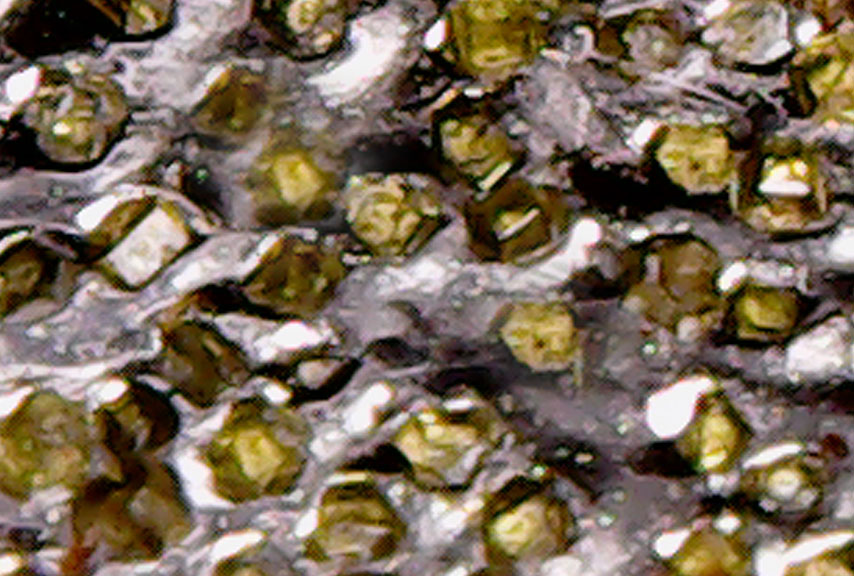

20/3034 		Diamond Cover
A thin copper foil with a diamond coating that gives you a 80 grit gripping texture. You glue this to each pad.		 D/C KORD
20/3034

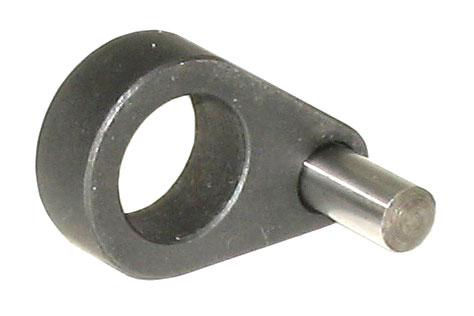

20/3038-Stop






More Inf:
 Part Name: STOP
Heidelberg MO P/N: 43.014.007
 MO FP Delivery Bar. 20/3038-Stop


20/3038-pad
20/3049.008






More Inf: 		Diamond pads for MO and SM 74 delivery gripper bars. MO

SM 74		 20/3038-pad

20/3049.008

Side Guide bar or Pull bars
20/3030
 Side Guide Bar or Pull Bar
Length -12.3" - (313 mm)
Hole to hole - 11.8" - (300 mm)
D/C
MO, SORDZ, SORD
#6.072.125
You can buy a new Bar or have us recondition yours.
20/3030
20/3031
 		Side Guide Bar or Pull Bar
Length - 14.3" - (363.2 mm)
Hole to hole - 13.8" - (350.5 mm)
D/C
Speed Master
You can buy a new Bar or have us recondition yours.
20/3031
20/3044
 		Side Guide Bar or Pull Bar
Length - 12.4"" - (315.2 mm)
Hole to hole - 11.9" - (303.5 mm)
D/C
Speed Master
You can buy a new Bar or have us recondition yours.
20/3044


Recondition You
Grippers Only.

Resurface the top of bar with industrial diamond coating.
D/C
Letter Press
Lead Time
4 to 6 working days

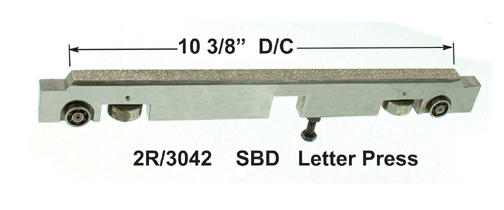

2R/3042
Plate Clamp - Clamping Strips

20/3060-T Tail
20/3060-H Head

More Info:
 Abrasive strip for plate clamp.

Thickness .125"__(3.17 mm)
Wide____ .44"___(11.17 mm)
Length_ 20.15" __(511.8 mm)

GTO 52
Diamond coated on one side for a new and Urethane coated on the other side. All you have to do, is remove the old gripping strip, then clean surface for bonding the strip with a contact cement or epoxy.
20/3060-T
20/3060-H



2R/3036
Reconditioning
your Bars

 Lower Bar #A1.007.116
Upper Bar #A1.007.116
QM 46 Plate Clamp
We can diamond coat your plate clamp bars
with in 4 to 5 working days.

2R/3065

Plate Clamp


More Info:
Strips
Length
200 mm/7.875"___ 20/3032-1
134 mm/5.275"___ 20/3032-2
80 mm/3.150" ___20/3032-3
D/C

MO press
Diamond coated spring steel strips that can be bonded to the clamping bar with epoxy.
20/3032-1
20/3032-2
20/3032-3
